Simple Actuator System (SAS) in CSPM

The complete CSPM specification is provided HERE.

Listing 1 below shows how we constrain our channels to work on an smaller range of values instead of the whole Int (integer) type.

  nametype displacement = { -50..50}
  nametype angularVelocity = { -150..150}
  nametype voltage = { -500..500}

  channel rawPosition, adjust: ActuatorId.displacement

  channel coreMoved: ActuatorId.displacement

  channel lvdtOutput: ActuatorId.voltage

Listing 1 CSPM specification constraints for the SAS

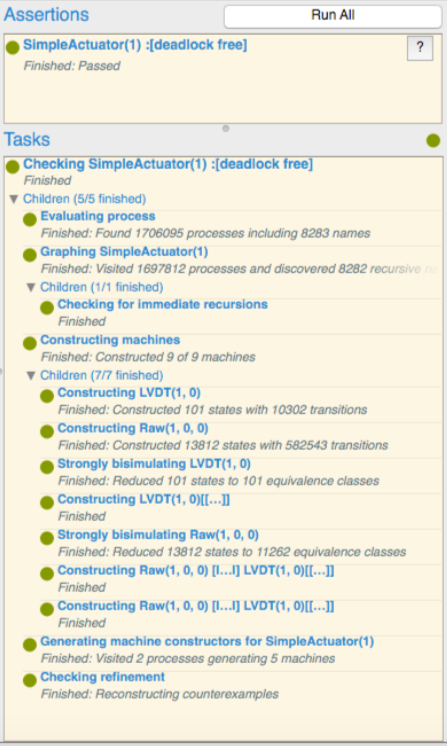

The Figure 1 below presents the results of the analysis in the FDR4 user interface. The verification of the assertion passed and FDR constructed nine (9) machines and, particularly, the processes LVDT(1,0) and Raw(1,0,0) have, respectively, 101 and 13812 states. The machines for these processes also have 10302 and 582543 transitions, respectively. Furthermore, FDR performed reduction of the state space using bisimulation and found 11262 equivalence classes for the Raw(1,0,0) process. The verification was performed in a Apple MacBook Air Mid 2011 with 4Gb RAM and 1,6GHz Intel Core i5 with macOS High Sierra (version 10.13.6).

Fig 1 SAS Deadlock Analysis Results using FDR4
